The Truth About Windsor Probe Testing: Why Correlation Is the Missing Piece

SME^® | Published on November 7, 2025

In the field of construction materials testing, the Windsor Probe has long been valued as a quick and inexpensive method to estimate the strength of in-place concrete. It’s often viewed as a “non-destructive” test that can “refute” low concrete strength results from standard cylinders. Owners appreciate it because it avoids coring holes in brand-new concrete, and constructors favor it for its speed and low risk of damaging reinforcement. Unfortunately, the Windsor Probe remains one of the most misunderstood tools in the concrete evaluation repertoire.

The Misconception: “The Windsor Probe Tells You the Concrete Strength”

The most common misconception is that the Windsor Probe provides a direct measure of compressive strength. It doesn’t.

What the Windsor Probe actually measures is surface hardness, or more precisely, the concrete’s resistance to penetration. During the test, a small steel probe is fired into the concrete using a standardized powder charge. The depth of penetration reflects surface hardness, which can be correlated to compressive strength only when a valid, project-specific correlation curve has been established for that particular concrete mixture.

Without that correlation, the numbers are largely meaningless.

Why Correlation Matters

Concrete is far from uniform. Its compressive strength is influenced by many factors:

• Aggregate type, hardness, and gradation
• Cement content and water/cement ratio
• Curing conditions and surface moisture
• Surface carbonation depth, finishing methods, and ambient temperature

Two concretes can share the same compressive strength yet yield very different Windsor Probe penetrations. Conversely, two slabs with identical probe readings can differ significantly in strength.

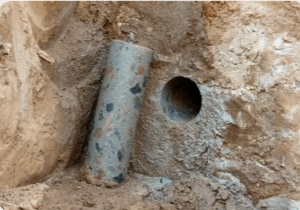

ASTM C803, the governing standard for this test, clearly states that any meaningful strength correlation must be developed by direct comparison with cores taken from the same concrete mixture placed under similar conditions.

The process involves:

• Performing paired probe tests and core extractions at nearby locations.
• Testing the cores in compression per ASTM C42.
• Plotting penetration resistance against compressive strength to create a project-specific curve.

Only that correlation curve gives the Windsor Probe results real engineering meaning. Without it, the test can only be used for relative comparisons, not absolute strength determination.

Why This Step Is So Often Skipped

Explaining to an owner or project team that probe results require coring to be valid often leads to skepticism. The logic is understandable: if cores must be taken anyway, why not rely on them alone? Unfortunately, this has led to a marketplace of firms offering Windsor Probe “strength” evaluations without proper correlation. Trading accuracy for convenience (and not nearly enough money for the risk) all while ending up with results that are almost certain to be misleading at best.
I have personally faced the dilemma of losing work because other firms promise definitive probe-based strength numbers, despite that approach contradicting ASTM standards and sound engineering judgment.

Developing a correlation curve takes coordination, time, and cost. When low cylinder breaks appear or early form removal is in question, the pressure for quick answers tempts teams to skip straight to the probe and read from the manufacturer’s calibration chart. But those charts are based on standard reference mixes tested under controlled laboratory conditions. They do not account for variability in aggregate hardness, mix proportions, or curing regimes which can each render the charts wildly inaccurate.

The result of skipping correlation? False reassurance and potentially costly misjudgments.

Conclusion

“If it’s too good to be true, it likely is.” The Windsor Probe is a valuable diagnostic tool when used correctly, but it is not a magic bullet (pun intended). Its readings cannot directly tell you the true in-place strength of concrete without a project-specific correlation curve.

Understanding this distinction between penetration resistance and verified compressive strength is essential for engineers and owners alike. Properly applied, the Windsor Probe can complement coring and provide meaningful insight. Used incorrectly, it can do little more than offer comfort without confidence.
